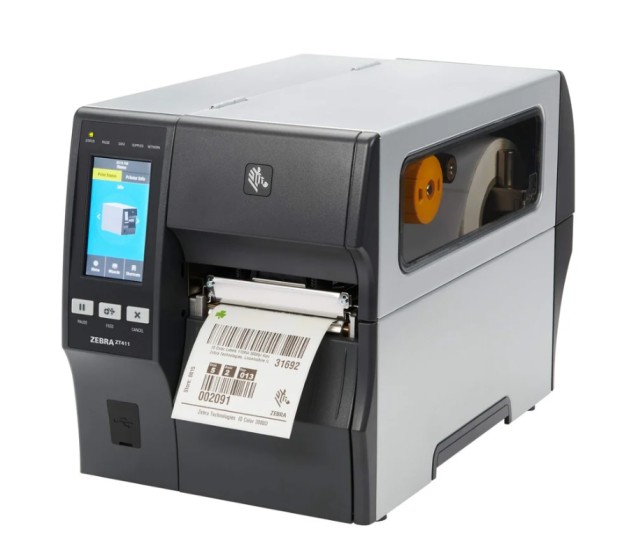

Zebra ZT411 Barcode Label Printer, Max. Print Width: 4 Inches, Resolution: 600 DPI (24 dots/mm)
Zebra Industrial Label Printer
| Max. Print Width | 4 Inches |
| Resolution | 600 DPI (24 dots/mm) |
| Max. Print Length | 100 inches |
| Maximum Print Speed | 6 inch/second |
| Maximum Label and Liner Length | 600 dpi: 39 in./991 mm |
| CPU Type | 64-bit RISC CPU |
| Printing Resolution | Printhead 600 dpi (24 dots / mm) |
| Product Dimension (W x H X D) | 19.5 in. L x 10.6 in. W x 12.75 in. H |
| Weight | 16.33 Kg |
| Memory | 512 MB Flash memory (64 MB User Available) |
| Connectivity | USB 2.0 |
| Printing Method | Direct Thermal & Thermal Transfer |
| Availability | In Stock |
ZT411 Printer Specifications
Specifications are provided for reference and are based on testing the ZT411 printer using
genuine Zebra supplies. Results may vary in actual application settings or when using
other-than-recommended Zebra supplies. Zebra recommends always qualifying any
application with thorough testing.
Standard Features
Printing
• Thermal transfer and direct thermal printing
• Thin film printhead with E3™ Element Energy™
Equalizer for superior print quality
• 203 dpi print resolution (8 dots/mm)
• Print speed per second up to 14 in.
(356 mm/second)
Communication
USB 2.0, high speed
• RS-232 Serial (RS-232C with DB9F
connector; Configurable baud rate (2400–
115,200kB), parity, and data bits. Stop bits
at 1 or 2; Software (XON/XOFF), hardware
(DTR/DSR or RTS/CTS) communication
handshake protocols)
• 10/100 Ethernet: Supports networks
internally integrated option that enables the
use of Webview and Alert features
• Bluetooth® 4.1
• Dual USB Host
Communication
• 4.3 in. color touch display with intuitive
menu for quick operation and
settings management
• Bi-colored status LEDs for quick
printer status
• ARM Cortex A7 processor
• 256 MB RAM memory (8 MB User Available)
• 512 MB Flash memory (64 MB User Available)
• Print Touch application
• Link-OS™-enabled
• Auto-switching 100-240V power supply
• ENERGY STAR® qualified
• Printhead element out detection
Media Support
Dual media sensors—transmissive
and reflective
• 3 in. media supply hanger
• Auto calibration when printer is turned on
or when printhead is closed
Design
• Easy, side-loading metal print mechanism
• Tool-less printhead and platen replacement
• Metal media cover with enlarged clear
viewing window
• Robust-gold user touch points indicating
key adjustments
• Bi-fold media door decreasing overall
operating space by 35%
Programming Languages
• Resident ZPL™, ZPL II™ and EPL™ programming
languages, selectable through software or
front panel
• XML-Enabled Printing—allows XML
communications for barcode label
printing eliminating license fees and
printer server hardware while lowering
customization and programming costs
