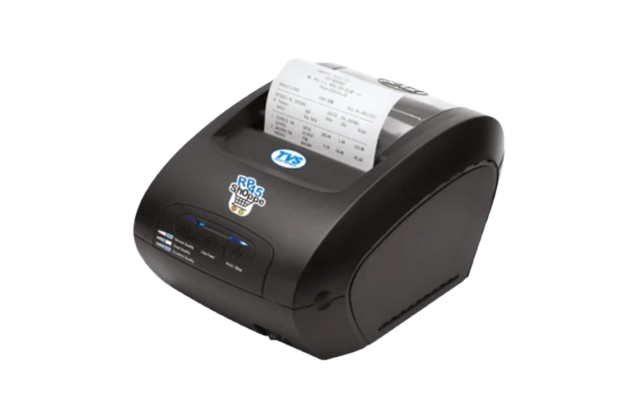

TVS RP-45-Shoppe-9W-40 Column DOT Marix printer

TVS

The RP 45 Shoppe is a high-performance POS Dot Matrix Printer (DMP) system, designed for fast, efficient printing, making it ideal for long duration prints and high-volume tasks
Its impressive print speed ensures smooth operations even in environments with intensive usage
Additionally, the printer’s low operational cost makes it a cost-effective solution for businesses requiring reliable, high-speed output without compromising on quality
The robust design minimises maintenance needs, ensuring trouble-free operations and long-term durability, making it perfect for retail, logistics, and other demanding sectors

Print method	9-pin serial impact dot matrix
Printing Speed	5 lps @ 16 cpi; 40 col
Print Font	7*9
Print width	2.25″ – 3.9″
Character sets	95 Alphanumeric characters
Barcode font	EAN 13, EAN 8, Code 3 of 9, Interleaved 2 of 5, UPC-A
Character Per Inch
Draft	12, 13.3, 15, 16, 17, 20
High speed draft	12
NLQ	12
Interface	USB, Parallel, Serial
Cash Drawer Support	1 port 9 (RJ 11 Socket)
Copy Capablity	1 original + 1 copy
Roll Paper Dimensions
Width	57 mm to 105 mm (2.25″ to 4.13″)
Diameter	83 mm Max
Core inner diameter	10 mm min
Paper tear	Stainless Steel tear bear
Input Buffer Capacity	10 KB
Ribbon Cassette
Colour	Black
Life	15 Mn Characters in Draft mode with 2 additional inkbanks
Refill mode	Through TVS Inkbank
Inkbank life	5 million characters in draft mode
Emulation	External PSU
Reliability
Mechanism	20 Million Lines MCBF
MTBF	10,000 POH @ 33% print density
Print Head	PTFE Coated, 200 Mn Characters in Draft
Drivers	Windows 95 /98 /ME /2000 /NT4.0 /XP, Vista, Linux
Physical Dimensions (WDH)	185260135
Weight	Approx 2.5 Kg
Color	Bone Grey, Black
Noise Level	49 dB (A)
Safety / EMC standard	FCC Class B, CE compliant, IEC 950
Standard Configuration	Printer TVS Ribbon Cassette External Power Adapter Parallel & USB interface cable printer software CD-ROM user manual Consumables: Ribbon Cassette, Inkbank
Accessories	Cash drawer cable
