ZD230DA Value Desktop 4-inch Wide
Key Features
The ZD200 Series—Easy to operate. Flexible features.
Key Features
-
Print Width: 4 in.
-
Print Technology: Thermal Transfer/Direct Thermal
-
Print Speed: 6 ips (152 mm/s), 4 ips (102 mm/s)
-
Print Resolution: 203 dpi (8 dot/mm), 300 dpi (12 dot/mm)

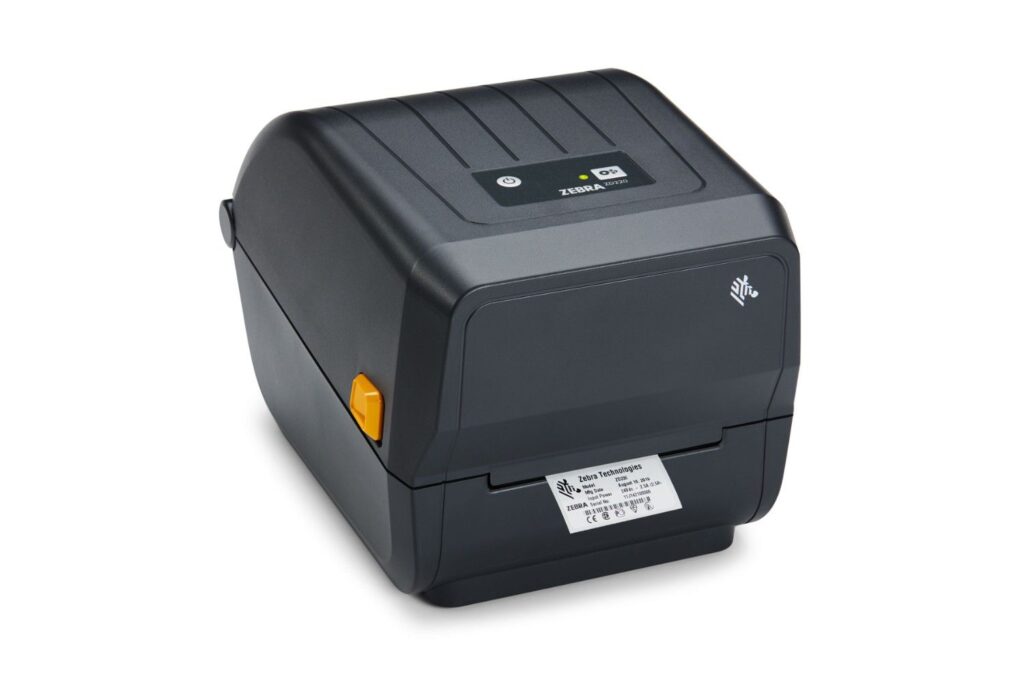

The ZD230TA is a thermal transfer desktop printer. This USB printer offers essential features and great print quality in either 203 dpi or 300 dpi. Designed for simplicity and easy everyday operation, it delivers reliable operation at an affordable price.
Printer Specifications
| Resolution | 203 dpi/8 dots per mm |
| Memory | 128 MB Flash; 128 MB SDRAM |
| Maximum Print Width | 4.09 in./104 mm |
| Programmable Print Speed | 6 in./152 mm per second or 4 in./102 mm per second |
| Media Sensors | Movable black mark sensor, limited range from center to left side Fixed off-center gap sensor |
| Firmware | ZPL II; EPL 2; XML |
Physical Characteristics
| Dimensions | Thermal Transfer: 10.5 in. L x 7.75 in. W x 7.5 in. H 267 mm L x 197 mm W x 191 mm H Direct Thermal: 8.6 in. L x 6.9 in. W x 5.9 in. H 220 mm L x 176 mm W x 151 mm H |
| Weight | Thermal Transfer: 3.7 lbs./1.7 kg Direct Thermal: 2.5 lbs./1.1 kg |
Media and Ribbon Characteristics
| Maximum Label Length | 39.0 in./991 mm |
| Media Width | 1.00 in./25.4 mm to 4.4 in./112 mm |
| Media Roll Size | 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) using optional adapters |
| Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) |
| Maximum Ribbon Length | 984 ft. (300 m) |
| Ribbon Ratio |
|
| Ribbon Width | 1.33 in./33.8 mm – 4.3 in./109.2 mm |
| Ribbon Core I.D. |
|
Fonts/Graphics/Symbologies
| Bar Code Ratios | 2:1 and 3:1 |
| 1D Bar Codes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Bar Codes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts Two resident scalable ZPL fonts Five resident expandable EPL2 fonts Native open-type font support Unicode compliant for multi-language, on demand thermal printing 50 MB user available non-volatile memory 8 MB user available SDRAM |
Operating Characteristics
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified |
