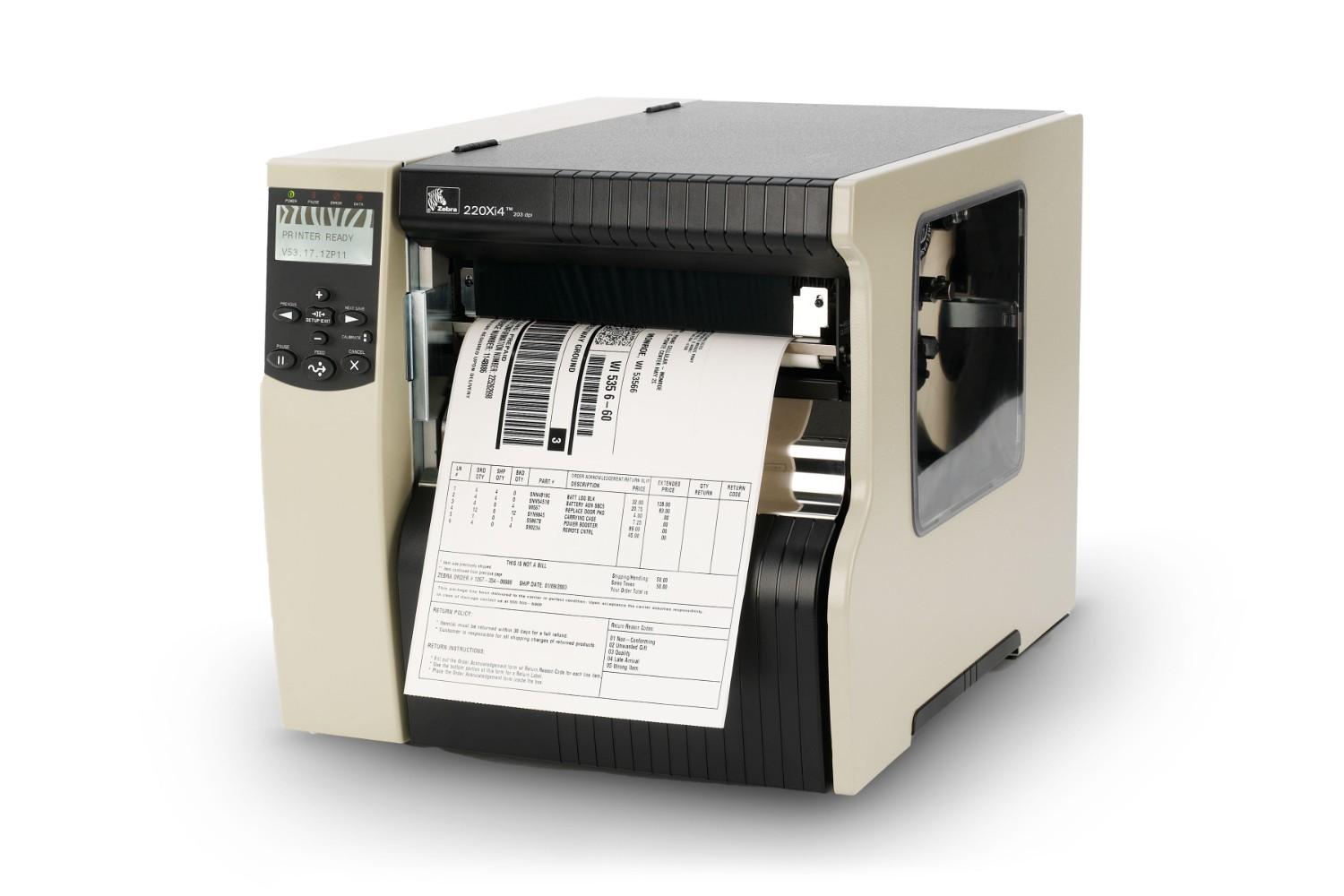

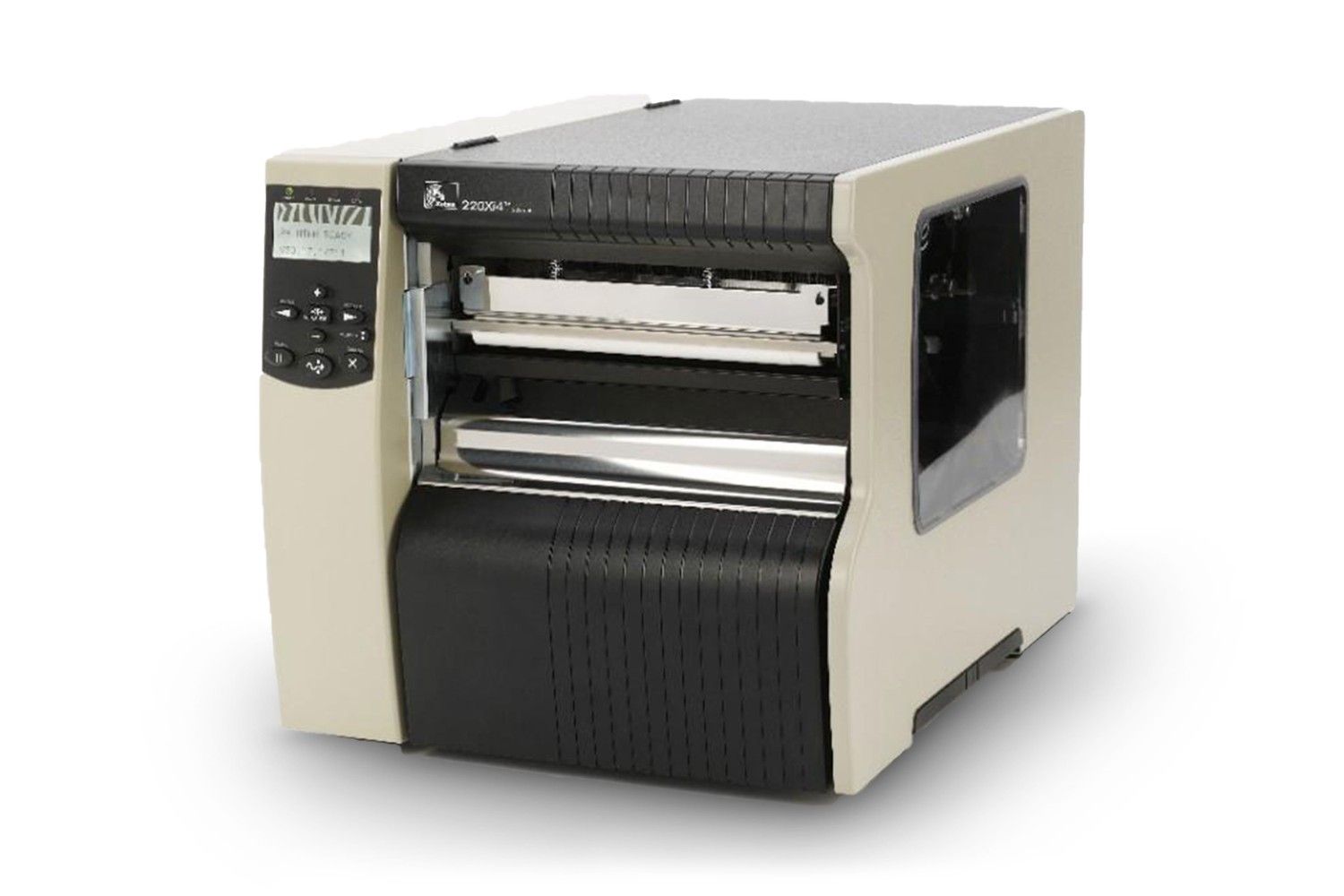

Zebra 220Xi4 Industrial Label Printers

Zebra

220Xi4 High Performance Industrial 8-inch Wide Standard

The Zebra 220Xi4 is a high-performance industrial label printer designed for demanding environments, offering exceptional speed and resolution for barcode and label printing. contact Mindware for expert support and solutions.

End of Sale

220Xi4IndustrialLabelPrinter
220Xi4IndustrialLabelPrinter

220Xi4 High Performance Industrial 8-inch Wide Standard

Descriptions

The Zebra 220Xi4 industrial label printer is a high-performance, heavy-duty printer designed for demanding environments. Known for its rugged construction and exceptional print quality, the 220Xi4 is ideal for high-volume and high-resolution label printing applications across various industries.

Key Features :

High-Quality Printing:

  • Print Technology: Thermal transfer and direct thermal
  • Print Resolution: 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) for detailed and clear labels
  • Print Width: Up to 8.6 inches (218 mm) to accommodate large label sizes
  • Print Speed: Up to 14 inches per second (356 mm per second) for fast label production

Versatile Media Handling:

  • Media Types: Supports labels, tags, and receipts
  • Media Width: From 1.0 inch (25.4 mm) to 8.6 inches (218 mm)
  • Media Length: Up to 39 inches (991 mm) or more depending on application
  • Media Roll Diameter: Up to 8 inches (203 mm) to reduce the need for frequent roll changes
  • Core Size: 3 inches (76.2 mm)

Durable and Robust Design:

  • Construction: Heavy-duty metal frame designed to withstand industrial environments and ensure long-term durability
  • High-Volume Capability: Built to handle high-volume printing with reliability and precision

User-Friendly Interface:

  • Display: LCD display with intuitive menu navigation for easy operation and configuration
  • Controls: Simple button interface for straightforward management

Connectivity Options:

  • Standard Ports: USB 2.0, Ethernet (10/100/1000), and Serial (RS-232)
  • Optional Connectivity: Wi-Fi and Bluetooth for enhanced flexibility and integration

Environmental Specifications:

  • Operating Temperature: 4°C to 40°C (39°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Humidity Range: 20% to 85% non-condensing

Power Supply:

  • Power Requirements: 100-240V AC, 50/60 Hz
  • Power Consumption: Up to 300 watts maximum

Additional Features:

  • Advanced Media Handling: Features such as a large media roll capacity and adjustable label guides for enhanced versatility
  • Modular Design: Allows for easy maintenance and upgrades

The Zebra 220Xi4 industrial label printer delivers exceptional performance and reliability for a wide range of industrial labeling needs. Its high-speed printing, large media capacity, and rugged design make it a valuable asset for businesses requiring durable and high-quality label solutions.

Specifications :

Print Specifications:

  • Print Technology: Thermal transfer and direct thermal
  • Print Resolution: 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
  • Print Width: Up to 8.6 inches (218 mm)
  • Print Speed: Up to 14 inches per second (356 mm per second)

Media Specifications:

  • Media Types: Labels, tags, receipts
  • Media Width: 1.0 inch (25.4 mm) to 8.6 inches (218 mm)
  • Media Length: Up to 39 inches (991 mm) or more depending on application
  • Media Roll Diameter: Up to 8 inches (203 mm)
  • Core Size: 3 inches (76.2 mm)

Ribbon Specifications:

  • Ribbon Capacity: Up to 450 meters (1476 feet) for extended print runs
  • Ribbon Width: 1.0 inch (25.4 mm) to 8.6 inches (218 mm)

Connectivity:

Standard Ports:

  • USB 2.0
  • Ethernet (10/100/1000)
  • Serial (RS-232)

Optional Connectivity:

  • Wi-Fi (optional)
  • Bluetooth (optional)

User Interface:

  • Display: LCD with backlight for easy visibility
  • Controls: Simple button interface for straightforward operation

Environmental Specifications:

  • Operating Temperature: 4°C to 40°C (39°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Humidity Range: 20% to 85% non-condensing

Power Supply:

  • Power Requirements: 100-240V AC, 50/60 Hz
  • Power Consumption: Up to 300 watts maximum

Additional Features:

  • Construction: Rugged metal frame designed for durability in industrial settings
  • Advanced Media Handling: Large media roll capacity and adjustable label guides for flexible media handling
  • Modular Design: Facilitates easy maintenance and upgrades

The Zebra 220Xi4 is designed for high-volume and high-resolution labeling tasks, making it suitable for various industrial applications where durability, speed, and quality are essential.
