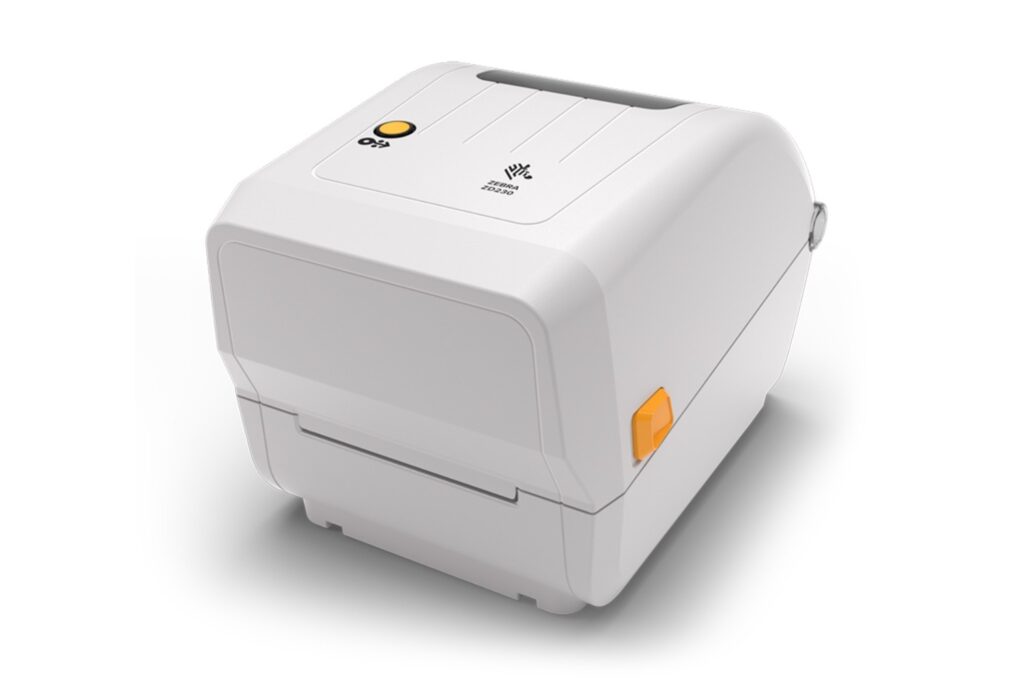

ZD230DA Value Desktop 4-inch Wide
Key Features
The ZD200 Series—Easy to operate. Flexible features.
Key Features
-
Print Width: 4 in.
-
Print Technology: Direct Thermal
-
Print Speed: 6 ips (152 mm/s), 4 ips (102 mm/s)
-
Print Resolution: 203 dpi (8 dot/mm), 300 dpi (12 dot/mm)
The ZD230DA is a direct thermal desktop printer. This USB printer provides essential functions and excellent print quality at resolutions of either 203 dpi or 300 dpi. Engineered for simplicity and hassle-free daily operation, it ensures dependable performance at a budget-friendly cost.
Printer Specifications
| Resolution | 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) |
| Memory | 8 MB Flash; 16 MB SDRAM |
| Maximum Print Width | 104mm for 203 dpi 106mm for 300 dpi |
| Maximum Print Speed | 152mm per second for 203 dpi 127mm per second for 300 dpi |
| Media Sensors | Movable black mark sensor, limited range from center to left side; fixed off-center gap sensor; ribbon sensor; head open sensor |
| Programming Languages | ZPL II; EPL 2; XML; compatible with TSPL subset |
Physical Characteristics
| Dimensions | Thermal Transfer (ZD230TA): 267mm L x 202mm W x 192mm H Direct Thermal (ZD230DA): 220mm L x 180mm W x 150mm H |
| Weight | Thermal Transfer (ZD230TA): 1.8kg Direct Thermal (ZD230DA): 1.2kg |
| Color | Gray or white color scheme |
Media and Ribbon Characteristics
| Label Length | Minimum: 25.4mm; maximum: 990mm |
| Media Width | 25.4mm to 112mm |
| Media Roll Size | Maximum outer diameter: 127mm Core inner diameter: 12.7mm and 25.4mm standard and 38.1mm using optional adapters |
| Media Thickness | Minimum: 0.06mm Maximum: 0.1905mm |
| Media Types | Roll-fed or fan-fold; die cut or continuous with or without black mark; tag stock; continuous receipt paper; wristbands |
| Ribbon Types | Wax; wax/resin; resin |
| Ribbon Outside Diameter | 66mm (300m) 34mm (74m) |
| Ribbon Length | 74m to 300m |
| Ribbon Ratio | 1:4 ribbon to media (300m) 1:1 ribbon to media (74m) |
| Ribbon Width | 33.02mm to 110mm |
| Ribbon Core I.D. | 25.4mm ( 300m); 12.7mm (74m) |
Fonts/Graphics/Symbologies
1D Barcodes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code |
| 2D Barcodes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts; Three resident scalable ZPL fonts; Five resident expandable EPL2 fonts; Native open-type font support; Unicode compliant for multi-language, on demand thermal printing 2 MB user available non-volatile memory; 2 MB user available SDRAM |
Operating Characteristics
| Operating Temperature | +5C to +40C |
| Storage Temperature | -40C to +60C |
| Operating Humidity | 25% to 85% non-condensing |
| Storage Humidity | 10% to 90% non-condensing |
| Electrical | 220VAC; 50Hz |
